Solar Water Heater---SPPR series flat plate pressurized SWH
SPPR-2.25/155
Features

High efficiency
Pressurized system
Large aperture area
Easy operation through large water flowrate

Components made of highly durable material
Tempered glass gaskets
High resistance to hail
Easy integration into buildings

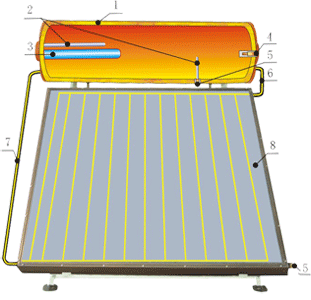

Principle

1.Insulation of tank 2.Magenisum bar
3.Water-electricity isolated electric heater
4.Safety-valve 5.Drain hole
6.Upward circulation pipe
7.Downward circulation pipe
8.collector

The framework of the collector is made of a thick aluminium profile in an elegant and practical shape. The back cover is made of a zinc plated steel plate with 0.8 mm thickness. The absorber is made of aluminium multi sun strip and is coated with selective coating in black-blue color to maximize the absorption of the solar irradiation. The thermal insulation is made of rock wool with a volume of 150 kg/m3 and 30 mm thickness. The collector offers a very high cost-profit ratio and also includes tempered glass gaskets for high endurance to the sun. The set of linking tubes is made of copper and features an expanded foam insulation. The side cover of the tank is made of engineering plastic ABS. It is made of a coloured steel plate with a thickness of 0.5 mm giving it a beautiful and elegant design. The tank itself is made of stainless steel 304 ( ocr18ni9) or enamel. Perfect insulation, rigidity and tightness is created by expanded polyurethane insulation which is injected in liquid form and expands after injection.

Technical data

Type

Sppr-2.25/155

System type

Pressurized

Principle

Thermosiphon

Capacity of tank

155 L

Efficiency of whole day

61%

Aperture area

2m²

Absorber

Aluminum-copper sunstrip produced by imported equipment from Canada

Coating

Anodizing, a>0.90, e<0.20

Material of inner tank

2mm enameled steel

Outside cover

0.5mm color steel plate

Material of frame

Aluminum

Glass

Tempered glass

Auxiliary electric heater

1.5KW water and electricity isolated electric heater. 220V, 50HZ

Dimension

1850 x1750 x 1320mm

Weight with water

266kg
