PG series flat plate Solar Collector
PG2.0-F/L
PG2.0-F/S
PG2.0-F/T
Features

Flat plate collector is the most popular in Europe and America for its excellent cost performance and long life cycle over 25 years. Because of its brilliant high efficiency in the low operating temperature range, they are widely used in the world. Sunda flat plate collector is a famous collector brand in China and from the raw material selection to the production processing its quality has been very strictly controlled. Comparing with other type of solar collectors, the flat plate collector has the best cost-effectiveness. It is suitable for the region, where solar resource is good and the freezing period is very short.

The core component of the solar collector is the absorber. Our absorber - “Sunstrip” is very famous type for decades of years throughout the world, which fin's metallurgically-bonded aluminum completely surrounds a copper tube waterway. The corrosion resistance of copper combined with the light weight and high thermal conductivity of aluminum produces the optimal finned tube. The metalurgical bond provides superior thermal contact resulting in superior heat absorption and conductivity, and long-term durability. Sunstrip fins and absorbers are high in efficiency, light in weight, technologically advanced, and offer attractive economics.
Selective coating on absorber will be the anodized Al or sputtering Al-N-O for your choice. Anodizing coating owns strongest weather resistance, which can work very well in any place. Sputtering coating is popular advanced selective coating technology, which has very high absorptance and lower emittance to improve overall performance of collector effectively.

Our another kind of full plate absorber adopts full plate laser welding technology, which ensures high efficiency and much better appearance.
Selective coating adopts international superior efficient absorber layer inside. Solar absorptance can reach 0.95 ± 0.02 and thermal emittance can fall to 0.04± 0.02.

High efficiency
Low thermal inertia
High heat conductivity
High pressure resistance
Long Life span
Easy installation
Zero maintenance
Easy integration into buildings

Technical data

Collector Type

PG2.0-F/L

PG2.0-F/S

PG2.0-F/T

Aperture Area

1.83 m²

1.83 m²

1.85 m²

Gross Area

2m²



Maximum Temperature of operation

130°C

Permissible operating pressure

8 bar

Test pressure

12 bar

L x W x H

2013x1013x 82mm

2000x1000x80mm

Weight

42Kg

34Kg



Cover



Material

Low iron tempered glass

Thickness

3.2mm

Transmittance

>0.91

Absorber

Material

Copper-Aluminum Sunstrip, 138mm widness

Full plate absorber, 0.4mm Aluminium

Surface Treatment

Anodizing

Sputtering Al-N-O

Sputtering blue coating

Absorptance

0.92

0.95±0.02
0.95±0.02

Emittance

0.15
0.07±0.02
0.04±0.02

Construction Type

Fin & Tube
Full plate & Tube

Header tube

ø22mm copper tube, 2pcs

Riser

ø12mm copper tube, 7pcs

ø10mm copper tube, 8pcs

Frame

Material

Aluminium alloy

Color

Silver

Insulation

Material

Fiber glass

Glass wool

Density

Back: 45kg / m3, side: 64kg / m3

Back: 32kg / m3, Side:24kg /m3

Thickness

Back: 30mm, Side: 25mm

Back: 30mm, Side: 28mm

Back plate

Galvanized plate, 0.5mm

Embossed aluminum sheet , 0.5mm

Max. operating Temperature

130°C

Max. operating pressure

8 bar

9 bar

Sealing profile

EPDM

Connection

22mm compression fitting

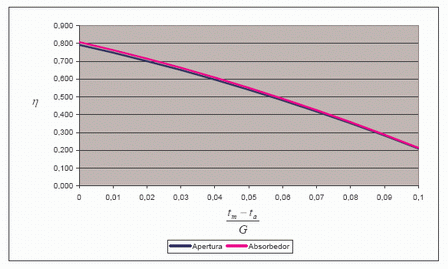

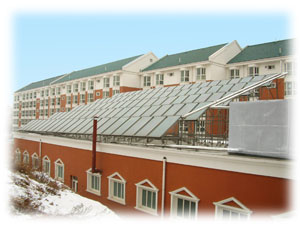

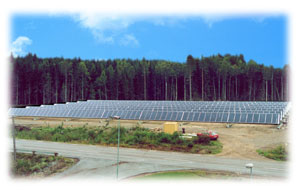

Application


This flat plate collector has already a history of over 60 years. Its high efficiency in the low operating temperature range has advanced its worldwide dissemination. The strict quality control from the raw material selection to the production processing has established the Sunda flat plate collector as a famous collector brand in China. The collector has the highest cost-effectiveness compared with other types of solar collectors and is suitable for regions with high annual solar irradiation and short winter.


An important asset of flat plate solar collectors is their versatility. One of the application areas for flat plate solar collectors is domestic water heating. Therefore installation requires remarkably little space making it practically applicable at any domestic place. Despite their little size, the collectors still cover over 70% of the hot water needs of an average household. Their excellent efficiency makes them also suitable for the operation of larger systems for commercial or public use.
